Haier Concealed 6 HP Cooling & Heating

Specification

Value

Model Code

AD48MH1EAA / 1U48PH1EAA

Horsepower

6 HP

Cooling Capacity

48,000 BTU/h

Cooling System

Coverage Area

~48–60 m²

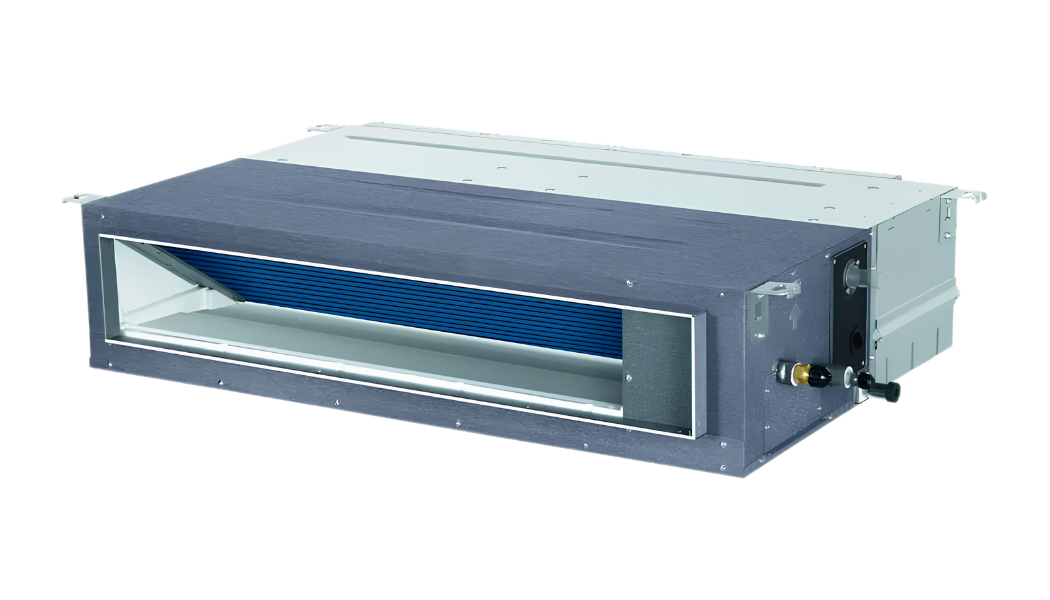

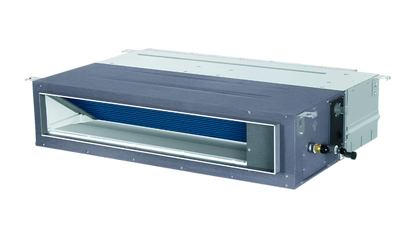

Indoor Unit Dimensions (W × H × D)

1350 × 490 × 425 mm

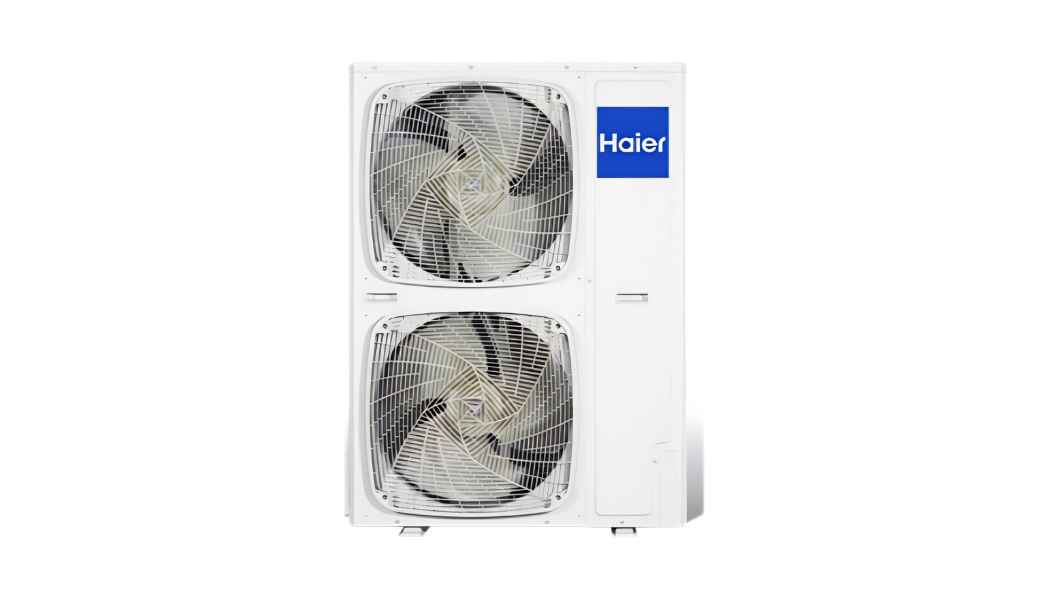

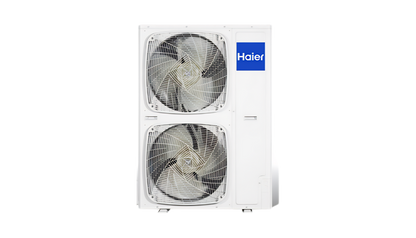

Outdoor Unit Dimensions (W × H × D)

950 × 370 × 1350 mm

Power Input (T1 / T3)

3.53 kW / 3.37 kW

EER (T1 / T3)

12.05 / 8.3 Btu/W

Air Flow (H/M/L)

3250 / 2750 / 2250 m³/h

Power Supply

1ph / 220–240 V / 50–60 Hz

Refrigerant

R410A

Inverter Technology

No (on/off)
